S&W Model 94

I just picked up a set at a pawn shop with no key. I think they are the third style and have a letter A stamped in the bow. Is that the key letter and where can I get one now that Cannons arn't in business?

http://www.ebay.com/itm/Key-Smith-Wesso ... 2eb675b138

This guy sells good looking repros on ebay. Otherwise I have some used original ones which are standard cut but are more expensive.

Another Paul

I just picked up a set at a pawn shop with no key. I think they are the third style and have a letter A stamped in the bow. Is that the key letter and where can I get one now that Cannons arn't in business?

Hmmm, I thought there are 16 combinations for those cuffs and keys. How do you know that you are getting the right one?

I have a set of 2 connected Model 94s, but I can't find a key. They may be a high security model. Any suggestions?

Thanks

I just picked up a set at a pawn shop with no key. I think they are the third style and have a letter A stamped in the bow. Is that the key letter and where can I get one now that Cannons arn't in business?

I suggest you get the plastic casing from a ball point pen and file the 16 combinations until you find the right one or get John or Ian to make one for you.
PD

I just picked up a set at a pawn shop with no key. I think they are the third style and have a letter A stamped in the bow. Is that the key letter and where can I get one now that Cannons arn't in business?

If the bow is stamped A then that corresponds to a standard N key (the most common).

I just picked up a set at a pawn shop with no key. I think they are the third style and have a letter A stamped in the bow. Is that the key letter and where can I get one now that Cannons arn't in business?

hi

it is correct

if stamped in the bow a letter A then the N type key will fit

i think i can help you out with this
if you agree with a copy key not original
otherwise john bushey can help you


best

patrick

I just picked up a set at a pawn shop with no key. I think they are the third style and have a letter A stamped in the bow. Is that the key letter and where can I get one now that Cannons arn't in business?

Hi, I am still making S&W94 as I have done for 20 years, John Bushey sells many of my handcuff keys.
email if you need further assistance

Ian

I just picked up a set at a pawn shop with no key. I think they are the third style and have a letter A stamped in the bow. Is that the key letter and where can I get one now that Cannons arn't in business?

Thank you all so much for the advice. I'll forward the serial number if that might help... it starts with an "L" if memory serves.

Thanks! ~Chuck

I just picked up a set at a pawn shop with no key. I think they are the third style and have a letter A stamped in the bow. Is that the key letter and where can I get one now that Cannons arn't in business?

These are 2 sets of Model 94s, connected with a chain. They look like they were made this way at the factory. A while back, somebody told me they were possibly made for high security transport... I guess we'll see.

~Chuck

I just picked up a set at a pawn shop with no key. I think they are the third style and have a letter A stamped in the bow. Is that the key letter and where can I get one now that Cannons arn't in business?

Hi Paul J, please email me ASAP

Ian

I just picked up a set at a pawn shop with no key. I think they are the third style and have a letter A stamped in the bow. Is that the key letter and where can I get one now that Cannons arn't in business?

Chuck, How about posting some pictures of your 94's.

I just picked up a set at a pawn shop with no key. I think they are the third style and have a letter A stamped in the bow. Is that the key letter and where can I get one now that Cannons arn't in business?

Hey folks,

I have the Serial Number for the connected Model 94s. It is L27523, and they are stamped "TST 75" ...possibly Texas State Trooper, Badge #75?

I could send a pic to you via email. but I'm not sure how to place one here.

Thanks, ~Chuck

I just picked up a set at a pawn shop with no key. I think they are the third style and have a letter A stamped in the bow. Is that the key letter and where can I get one now that Cannons arn't in business?

Oh, the Serial Number is just on one of the sets, the other set has no Serial Number.

Could that be a factory application?

~Chuck

I just picked up a set at a pawn shop with no key. I think they are the third style and have a letter A stamped in the bow. Is that the key letter and where can I get one now that Cannons arn't in business?

I also thought of taking modelling clay or chewing gum and gently mashing it into the keyhole to try and get the key image.

Getting desperate here, eh? :D

~Chuck

I just picked up a set at a pawn shop with no key. I think they are the third style and have a letter A stamped in the bow. Is that the key letter and where can I get one now that Cannons arn't in business?

The L key has cuts at 4:30 and 7:30 with the slot up at 12:00 No need to go sticking bubble gum in a 94 keyhole!!!

I just picked up a set at a pawn shop with no key. I think they are the third style and have a letter A stamped in the bow. Is that the key letter and where can I get one now that Cannons arn't in business?

the best way to determine the combination is to pick the lock.

I just picked up a set at a pawn shop with no key. I think they are the third style and have a letter A stamped in the bow. Is that the key letter and where can I get one now that Cannons arn't in business?

Well, it would have been nearly-dry bubble gum.

Thank you so much for that advice. I have a book that shows all 16 combinations. Maybe I should take all the bits (I have a spare key or two) to a locksmith and see if he wants to tackle this.

Cheers! ~Chuck

I just picked up a set at a pawn shop with no key. I think they are the third style and have a letter A stamped in the bow. Is that the key letter and where can I get one now that Cannons arn't in business?

Or perhaps I should just buy a key with this pattern? Any suggestions as to the availability of one?

Thanks again, ~Chuck

I just picked up a set at a pawn shop with no key. I think they are the third style and have a letter A stamped in the bow. Is that the key letter and where can I get one now that Cannons arn't in business?

Well if your cuffs are truly an L key, that was a restricted pattern. Your best bet is to buy a key off of someone like Ian or perhaps John Bushey. Thats probably a better bet than going to a locksmith

I just picked up a set at a pawn shop with no key. I think they are the third style and have a letter A stamped in the bow. Is that the key letter and where can I get one now that Cannons arn't in business?

I have another idea. If these cuffs are restricted, should I send them to the key supplier (In the US, due to shipping costs) and let them match it up? That might be ultimately cheaper than ordering the wrong keys multiple times.

Just an idea.

~Chuck

I just picked up a set at a pawn shop with no key. I think they are the third style and have a letter A stamped in the bow. Is that the key letter and where can I get one now that Cannons arn't in business?

http://www.network54.com/Forum/261154/m ... Steel+Keys

I just picked up a set at a pawn shop with no key. I think they are the third style and have a letter A stamped in the bow. Is that the key letter and where can I get one now that Cannons arn't in business?

What is this?

My key have a sign on the top of the ring "N"

and the code from chart is M.

What can I realy do because if I did not have a key?

best

Jens

I just picked up a set at a pawn shop with no key. I think they are the third style and have a letter A stamped in the bow. Is that the key letter and where can I get one now that Cannons arn't in business?

Hi Jens, are you holding the key and looking at it pointing away from your eye ? Don't read the key by looking at the tip straight on.

Ian

I just picked up a set at a pawn shop with no key. I think they are the third style and have a letter A stamped in the bow. Is that the key letter and where can I get one now that Cannons arn't in business?

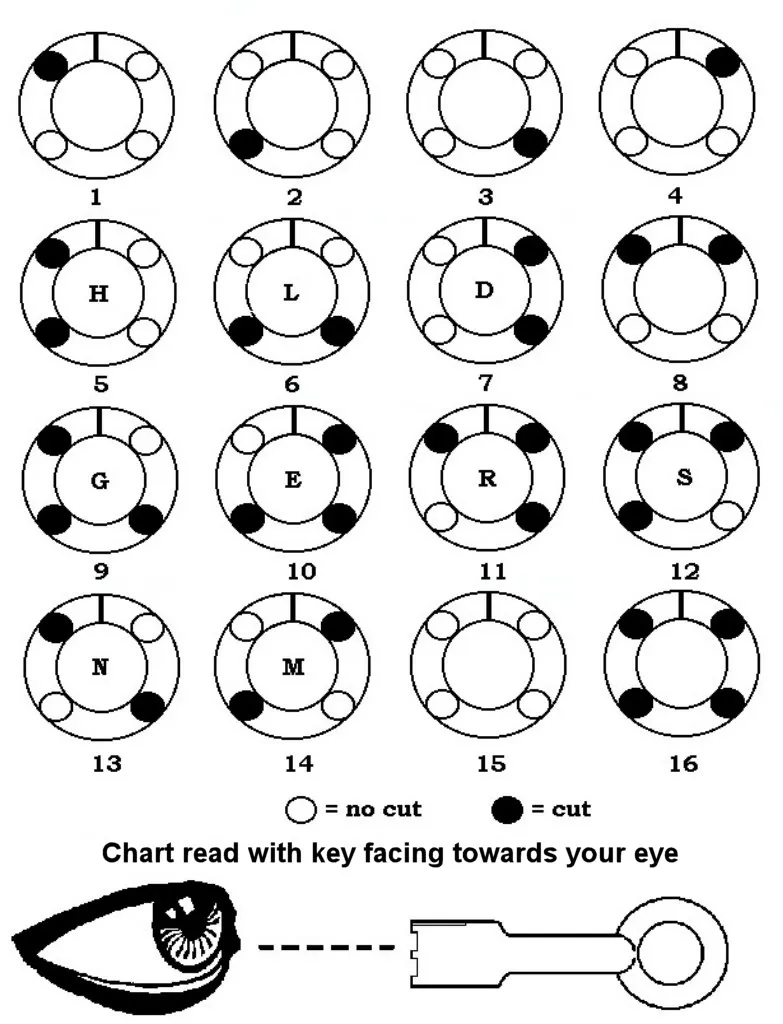

Thanks for posting this chart, Ian!

What I find most interesting is that #15 has no cut/s whatsoever.
This should reduce security substantially, and I'm frankly befuddled by this configuration.




Regards,
Jason

I just picked up a set at a pawn shop with no key. I think they are the third style and have a letter A stamped in the bow. Is that the key letter and where can I get one now that Cannons arn't in business?

Hi Jason, I made up the chart to show all the permutations of a 4 pin tumbler, two depth cylinder as used in the S&W 94.

The chart is all possible combinations but not all the combinations were used or would want to be used. Number 15 and 16 are combinations which if they existed would have the weakest security and the 15 key would also operate the 16.

Only those which have a letter associated with them are current known to exist and I thank collector Joe Fox for many of them from his own collection.

Ian

I just picked up a set at a pawn shop with no key. I think they are the third style and have a letter A stamped in the bow. Is that the key letter and where can I get one now that Cannons arn't in business?

Thanks for the clarification, Ian!
That makes perfect sense.



Best,
Jason

I just picked up a set at a pawn shop with no key. I think they are the third style and have a letter A stamped in the bow. Is that the key letter and where can I get one now that Cannons arn't in business?

?t=1325623853

I just picked up a set at a pawn shop with no key. I think they are the third style and have a letter A stamped in the bow. Is that the key letter and where can I get one now that Cannons arn't in business?

One might also say about that chart, if looking into the cuff keyhole, the white "uncut" marks are the pins that must be pushed.

Put the chart in photoshop and re-do the opposite so if you have a key blank in the vise its easier to determine where to file... ie mirror image

I just picked up a set at a pawn shop with no key. I think they are the third style and have a letter A stamped in the bow. Is that the key letter and where can I get one now that Cannons arn't in business?

Chart in reverse for easy key checking...

I just picked up a set at a pawn shop with no key. I think they are the third style and have a letter A stamped in the bow. Is that the key letter and where can I get one now that Cannons arn't in business?

If anybody knows where I could get an "L" pattern key, I would sure appreciate it.

Thanks, ~Chuck

I just picked up a set at a pawn shop with no key. I think they are the third style and have a letter A stamped in the bow. Is that the key letter and where can I get one now that Cannons arn't in business?

Thank you Ian, I'm not understand the first codechart

My key is with "N" code.

best

Jens

I just picked up a set at a pawn shop with no key. I think they are the third style and have a letter A stamped in the bow. Is that the key letter and where can I get one now that Cannons arn't in business?

Could who ever posted the reverse chart remove it.
In the profession of locksmithing keys of this nature are always read in the direction that the keyhole would also be seen.

If you were to pick the lock of a S&W 94 cuff and then look at the tumblers to work out the combination, the correct and correctly read chart would allow you to work out the key letter and combination.

Modifing my chart because you don't know how to read it is an insult to my assistance. I won't be posting picture to help in the future.

Ian

I just picked up a set at a pawn shop with no key. I think they are the third style and have a letter A stamped in the bow. Is that the key letter and where can I get one now that Cannons arn't in business?

Yes i tryed to use this reversed chart and as you can see the key faces the eye.. well i poked my eye ..lol.

I just picked up a set at a pawn shop with no key. I think they are the third style and have a letter A stamped in the bow. Is that the key letter and where can I get one now that Cannons arn't in business?

Hey Anon, you might think you are funny but anyone making a mistake and looking at the wrong chart that your reversed might now order the wrong key and waste someone money and time.

I guess you are the some anon person that has put one line pointless comments at many other threads.

"What is the point!!!!!!!!!! If you cannot be helpful, no hastle.

Ian

I just picked up a set at a pawn shop with no key. I think they are the third style and have a letter A stamped in the bow. Is that the key letter and where can I get one now that Cannons arn't in business?

Ian dont get mad at me i dident post this reversed chart up i was just trying to make a funny at what i see.It almost looks like arrows pointing at your eye.I have mostly all the coded M94s I was just looking for a laugh

I just picked up a set at a pawn shop with no key. I think they are the third style and have a letter A stamped in the bow. Is that the key letter and where can I get one now that Cannons arn't in business?

and you are?? (email me direct if you like)

I just picked up a set at a pawn shop with no key. I think they are the third style and have a letter A stamped in the bow. Is that the key letter and where can I get one now that Cannons arn't in business?

Chuck, I have my email address posted if you would send me some pictures of the connected 94's.

Anonymous3x@hotmail.com

I appreciate it.

I just picked up a set at a pawn shop with no key. I think they are the third style and have a letter A stamped in the bow. Is that the key letter and where can I get one now that Cannons arn't in business?

I'll send them very soon. Thanks for your help.

I just picked up a set at a pawn shop with no key. I think they are the third style and have a letter A stamped in the bow. Is that the key letter and where can I get one now that Cannons arn't in business?

I am glad I saved the reversed chart before it was deleted. Very handy for checking those extra keys. I for one appreciated it greatly.

I do however understand having multiple charts around could present problems, but it was presented for what is was, and was clearly marked.

Perhaps more effort should be made to end some of the stupid bickering and name calling that happens on a all to regular basis on this forum, instead of wasting time and effort deleting good posts.

Just saying...

Austin

I just picked up a set at a pawn shop with no key. I think they are the third style and have a letter A stamped in the bow. Is that the key letter and where can I get one now that Cannons arn't in business?

Hi, thanks Austin for your thoughts. Sorry I didn't see, missed (or maybe they were deleted) any of your posts on the objections in the threads you mention.

I objected to my intellectual property being modified and displayed again and by someone nameless.

I find it odd that everything has to be simplified so that no thought has to be accessed. Does everything need to be brought down to the lowest common denominator???

Best I keep my work to myself dont you think??

I just picked up a set at a pawn shop with no key. I think they are the third style and have a letter A stamped in the bow. Is that the key letter and where can I get one now that Cannons arn't in business?

If anybody else wishes to see these connected Model 94s, I'll be glad to email you some pics I just took of them.

Thanks, ~Chuck

I just picked up a set at a pawn shop with no key. I think they are the third style and have a letter A stamped in the bow. Is that the key letter and where can I get one now that Cannons arn't in business?

Do the Model 94 cuffs have multiple pin heights when the key chart refers to a cut vs no cut?

What is the best method to picking them to determine the key type? I have tried a bic pen tube with the proper cut outs but it doesnt seem to work.

I just picked up a set at a pawn shop with no key. I think they are the third style and have a letter A stamped in the bow. Is that the key letter and where can I get one now that Cannons arn't in business?

Oh, yes, the irony of the ball point pen barrel. Potentially a great cuff if not for an unfortunate size coincidence. The same could be said of a standard cuff and the old ball point pin ink cartridges back when they were made of metal. I have several pairs of 94s that I have won over the years from ebay and 2 of them refuse to smoothly open with one of my keys no matter how much I clean and lube them (all my keys are N pattern.) You can 'work' the key and get them to open but it is troublesome. I first thought the springs behind the pins were shot but now I am thinking that perhaps they aren't the 'N' type lock. I have heard of other pin patterns for so called restricted models but now that I see the chart I am going to have to dig those things up and examine them again. Thank you Ian!

Did anybody notice the lockcase is one piece of heavy steel folded over from the hinge pin to the hinge pin? Strong!

I just picked up a set at a pawn shop with no key. I think they are the third style and have a letter A stamped in the bow. Is that the key letter and where can I get one now that Cannons arn't in business?

I have found that the tolerances to be in the 1/1000 of an inch range for the pins.

I just picked up a set at a pawn shop with no key. I think they are the third style and have a letter A stamped in the bow. Is that the key letter and where can I get one now that Cannons arn't in business?

Can anyone post what the best way to pick these cuffs use common items is?

I just picked up a set at a pawn shop with no key. I think they are the third style and have a letter A stamped in the bow. Is that the key letter and where can I get one now that Cannons arn't in business?

will anonymous identify themself before seeking such information

I just picked up a set at a pawn shop with no key. I think they are the third style and have a letter A stamped in the bow. Is that the key letter and where can I get one now that Cannons arn't in business?

Here is a pic of Chuck's connected 94 cuffs.



The connecting chain is of the type used by S&W and Peerless on their leg irons.

If as you stated only 1 pair has a serial number, it may be that this was part of a special order from S&W. (who knows for sure) ?
