Rankins

I have a set of Rankin Leg Irons

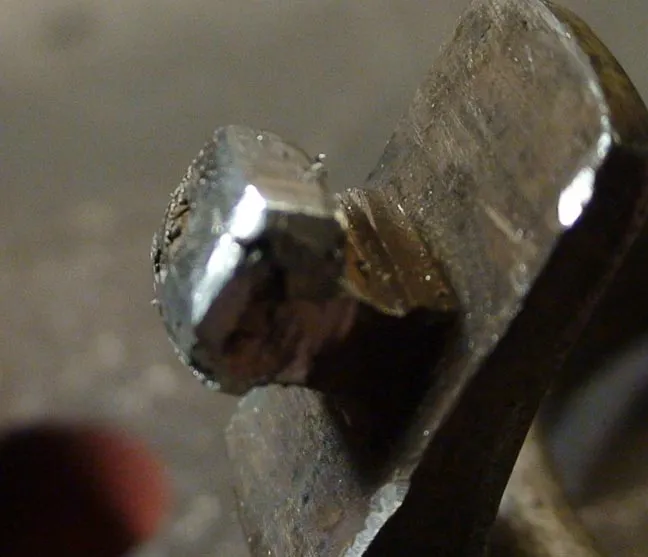

The part that's attached to the bow (The part that actually enters the lock mechanism) was filed down. I have added some metal (photo) but can't figure-out the correct shape.



If anyone can help by taking a photo of that part from two directions, I could use it to these Irons work again.

Thank you very much.

Jay

Hi Jay,

Long time no see, I hope all is fine with you!

It's late at night here in Sweden but a shot a few photos with the flash. They are not top class
but I hope they will help you. You need to add much more metal.

Email me privately if you need the exact measures.

Take care,

Lars

I have a set of Rankin Leg Irons
The part that's attached to the bow (The part that actually enters the lock mechanism) was filed down. I have added some metal (photo) but can't figure-out the correct shape.



If anyone can help by taking a photo of that part from two directions, I could use it to these Irons work again.

Thank you very much.

Jay

Click to expand...

Thank you. I knew that someone who was intelligent and smart would have a photo.

I've been staring at the internal construction and... It's beyond me that this actually works but it must. I will weld, grind and file until these are in working order again.

Thank you again.
