OFF THE CUFF VIDEO TOWERS PATENT STOP

Here's a funky Towers with an extra long chain!
http://youtu.be/nM_E07WcXyU

what is a pair of these worth? with stop lever.

Here's a funky Towers with an extra long chain!
http://youtu.be/nM_E07WcXyU

Does anyone have a union hwd. type stop lock with the oblong link and swivels,marked TOWER DOUBLE LOCK
and looking for opinion as to weather all oblong link were made by only UNION HWD. or do you think J.J. TOWER made some before the takeover !

LK D~D

Here's a funky Towers with an extra long chain!
http://youtu.be/nM_E07WcXyU

The patent papers mention several methods were tried. Another one was a hole for a pin to be inserted to stop the bow from being locked. I have a pair of these with a neatly factory drilled hole which will accept a pin, paper clip, etc. There is no information as to wither this pin was tethered to the cuff or was just a loose pin to be inserted and removed by the user.

I have tried to post a picture, but Photobucket will not operate properly and for me. The photo is there but I can not access it for posting or choose another.

Ron

Here's a funky Towers with an extra long chain!
http://youtu.be/nM_E07WcXyU

Hi RON.why don't you just post your photo bucket URL by right cliking on the url, clik on copy, then come here and hit paste,in a post, then we could to their and see it, understand if you don"t want that just suggesting an idea !

LK D~D

Here's a funky Towers with an extra long chain!
http://youtu.be/nM_E07WcXyU

Hi LK--I tried that and it would not work. Seems like my whole Photobucket album is screwed up. Nothing can be selected. I'll try again later. Maybe someone will bug spray the system.

Ron

Here's a funky Towers with an extra long chain!
http://youtu.be/nM_E07WcXyU

any idea of price?

Here's a funky Towers with an extra long chain!
http://youtu.be/nM_E07WcXyU

OK RON, Hope you can get it back!
most of the time I highlight it (by clicking past the url to turn it blue ) and then right click, good luck

LK D~D

Here's a funky Towers with an extra long chain!
http://youtu.be/nM_E07WcXyU

Still looking for opinions on the UNION HWD. oblong link WITH SWELVELS vs the 3 ring TOWERS PATIENT STOP and any other owned ?
( see above post )

LK D~D

Here's a funky Towers with an extra long chain!
http://youtu.be/nM_E07WcXyU

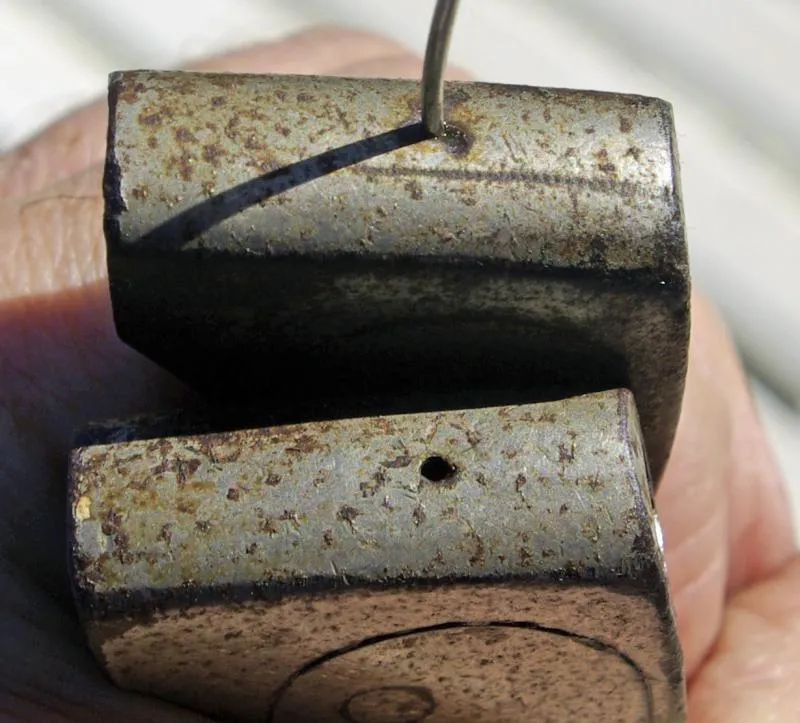

Here is the photo of my Tower Patent Stop. A paper clip was used for the pin to stop the bow from closing.

Photobucket still does not function as it use to for some reason but I got around the problem.



Ron

Here's a funky Towers with an extra long chain!
http://youtu.be/nM_E07WcXyU

Looks like it would work alright!

THE TYPE I talked about above is a normal patent stop only union HWD. STYLE, RON or any one else, ever seen one ? are they common ? this is the only one I remember seeing but all I have to go by are the photos I've seen! Haven"t seen other collections first hand as to touch and hold and look LOL



LK D~D

Here's a funky Towers with an extra long chain!
http://youtu.be/nM_E07WcXyU

The only bow stops I have seen are on the "old style" Tower cuffs, none on the single link Union Hardware cuffs.

Ron

Here's a funky Towers with an extra long chain!
http://youtu.be/nM_E07WcXyU

THANKS Ron, has anyone else seen one like that????

LK D~D

Here's a funky Towers with an extra long chain!
http://youtu.be/nM_E07WcXyU

so what are they worth?? anyone??!!

Here's a funky Towers with an extra long chain!
http://youtu.be/nM_E07WcXyU

to ZENWORSHIP and the anon's above to get a rough estimate of what their worth go here:

http://handcuffs.org/tower/index.html

go to bottom of page for price range estimates !

this was written years ago so it is a rough estimate, time changes and economy"s change !

mostly their worth depends on what the seller is willing to take and what the buyer is willing to pay!

LK D~D

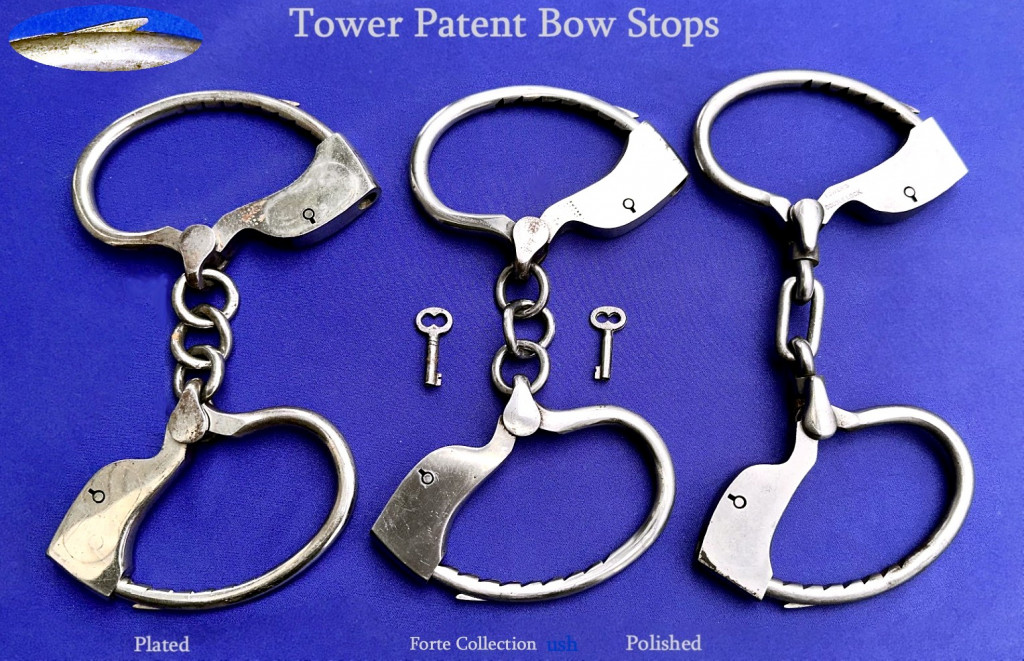

This discussion goes back about 10 years, and I am happy to have just won the polished steel version of this fairly hard cuff to find.
This original Chain Tower Double Lock Cuff was purchased from the Forte Collection auction.
I have had the Union Hardware version (with the swivel link) and the plated chain Tower for a while and hope to find the plated version to complete the factory regular issue set.
Arioch's long chain model is a neat item, but I don't know why a transport cuff would need the patent stops as this is mainly needed for an arrest style cuff.

The Patent Stop seems to be a response to the Bean improvement that allowed the cuffs to be closed but unlocked until the office was ready to arrest the subject.
Apparently, the Tower design was thought up and an application for this patent occurred just days after the Bean patent was applied.

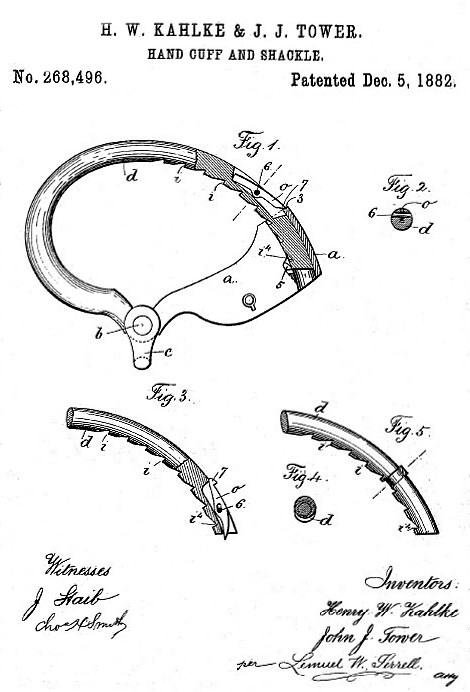

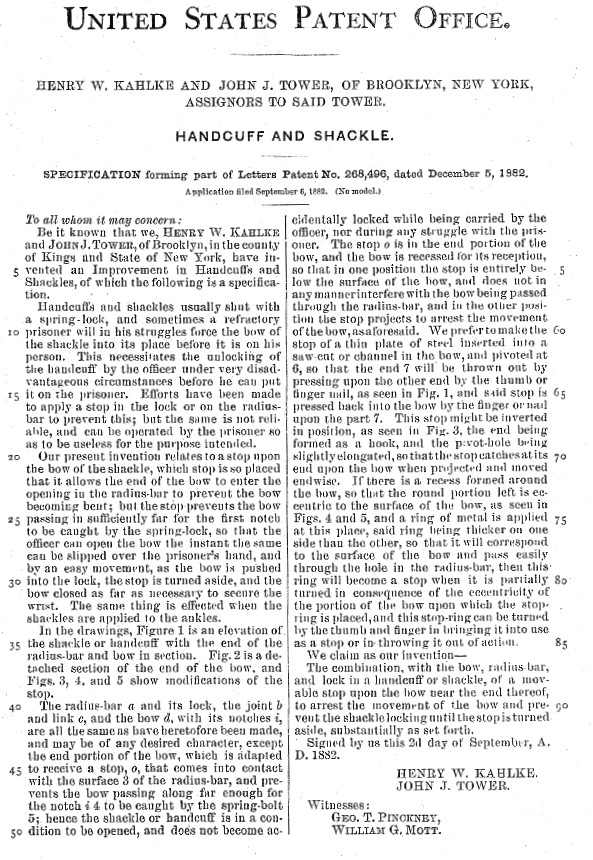

"Handcuffs and shackles usually shut with a spring-lock, and sometimes a refractory prisoner will in his struggles force the bow of the shackle into its place before it is on his person. This necessitates the unlocking of the handcuff' by the officer under very disadvantageous circumstances before he can put it on the prisoner. Efforts have been made to apply a stop in the lock or on the radius bar to prevent this; but the same is not reliable and can be operated by the prisoner so as to be useless for the purpose intended.

Our present invention relates to a stop upon the bow of the shackle, which stop is so placed that it allows the end of the bow to enter the opening in the radius-bar to prevent the bow becoming bent but the stop-prevents the bow passing in sufficiently far for the first notch to be caught by the spring-lock, so that the officer can open the bow the instant the same can he slipped over the prisoners hand."

https://collection.sciencemuseumgroup.o ... -handcuffs

I have had this set of Tower's for many years and wondered about the holes factory drilled in each cuff.  I posted the information many years ago after reading the patent paper several times.  The papers mention three ways to do a bow stop, the main method is described in this thread.  The second method is with an attachment that moves into place.  I have only seen one of this type and the owner posted the information on the Forum many years ago.  The third method is to have a hole where a pin can be inserted to prevent the closure of the bows.  This is what I have along with several of the type previously mentioned.

Hope to see everyone at the Indy Lock Show next weekend.

Ron
